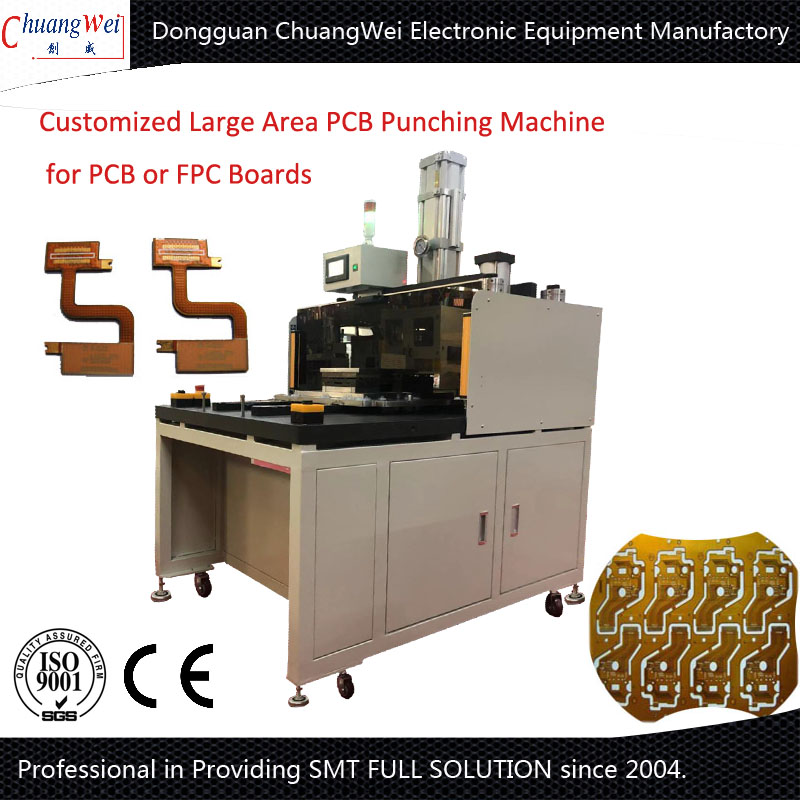

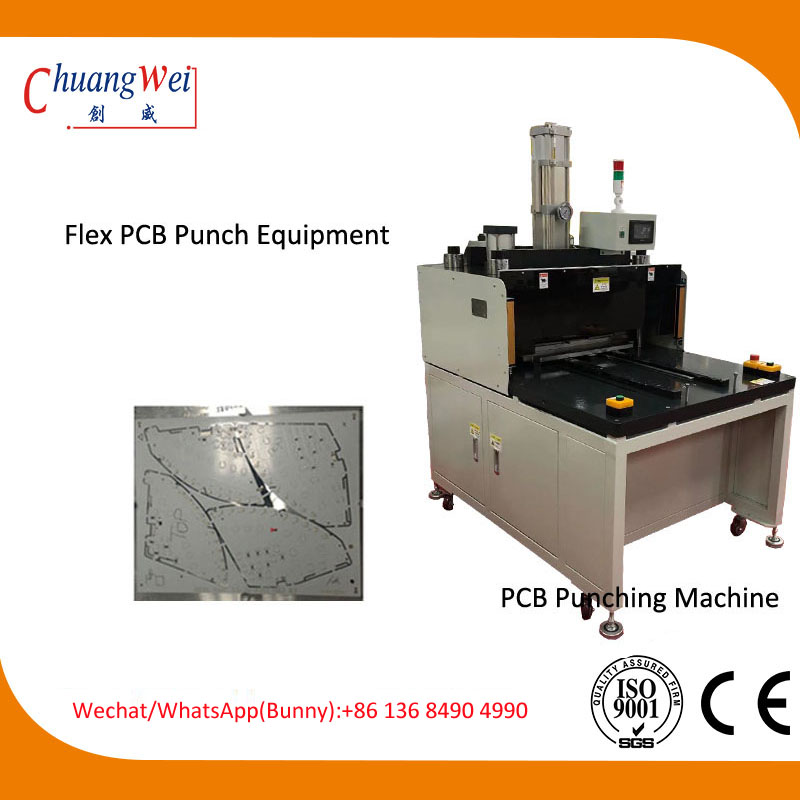

PCB Punching Machine

  • LED, PCB Punch Machine with High Efficiency from Chuangwei
LED, PCB Punch Machine with High Efficiency from Chuangwei

LED, PCB Punch Machine with High Efficiency from Chuangwei

  • Product description: LED, PCB Punch Machine with High Efficiency from Chuangwei
  • INQUIRY

LED, PCB Punch Machine with High Efficiency from Chuangwei



Item                                           Parameter
Working area(mm)                    640*640
Working pressure(Mpa)            0.4-0.7
Fixture/Die(PCS)                      1

Machine size(mm)                  1400*1000*1850mm

Weight(Kg)                             1800Kg

Output pressure(T)                 8
Input voltage (V/HZ)              230/50


LED, PCB Punch Machine with High Efficiency from Chuangwei Feature:


2.2.1 This punching machine is specially designed for cutting and punching of all
kinds of panels with molds, such as FPC and PCB hard board. It can avoid all
the problems caused by manual pulling, folding, pliers, shearing, and so on.
Flash and other undesirable phenomena.
2.2.2 According to different products or die toolings, arbitrarily adjust the punching
speed, punching pressure and punching time.
2.2.3 Easy to replace die toolings, touch screen has die tooling replacement
password to ensure safety production.
2.2.4 Vertical movement of lower mold for easy loading and unloading panel

2.2.5 Using two-hand buttons synchronization (1 second) to control, to eliminate


human security risks
2.2.6 Use clean gas, no oil, low power, energy saving, easy maintenance, speed and
output stability.
2.2.7 Automatic or manual mode is optional, computer counting and program
combination, the same day output and total output record at the same time,
convenient statistics, and the quasi-quasi-and efficient.(Automatic:this
function is only used for testing machine, not used for production)
2.2.8 Pneumatic technology, an air compressor can work for more than one punch,
normal use and post-maintenance costs lower than other types of punching
machine.
2.2.9 Has stop working and alarm function due to air pressure issue, to ensure
adequate power& quality.



More information you wanna know, welcome to contact us
